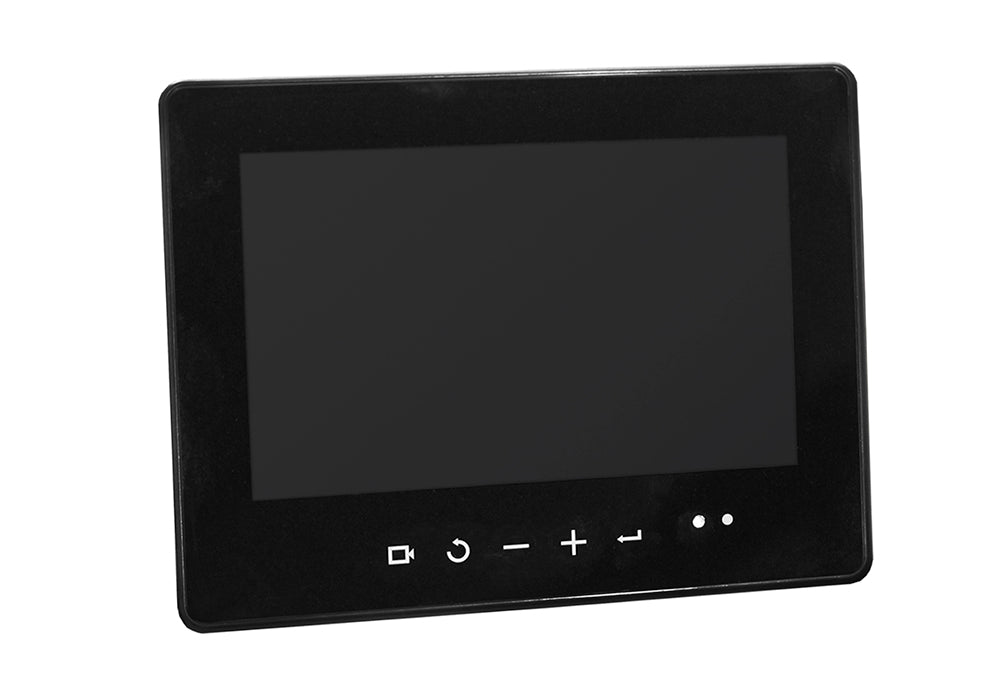

0411420 - Orlaco ELED BroadR-Reach 7 inch monitor. The Orlaco ELED 7" BroadR-Reach Ethernet monitor is suitable for use with vision solutions for machinery, trucks and ships.
The digital high-definition ELED monitor is combined with Orlaco Ethernet cameras, such as the EMOS. The HD built-on monitor is shock and vibration resistant, automatically adjusts the brightness of the image depending on the ambient light conditions, and supports mirror image correction.
Adjustable bracket can be ordered separately (0401290).
Features & Details

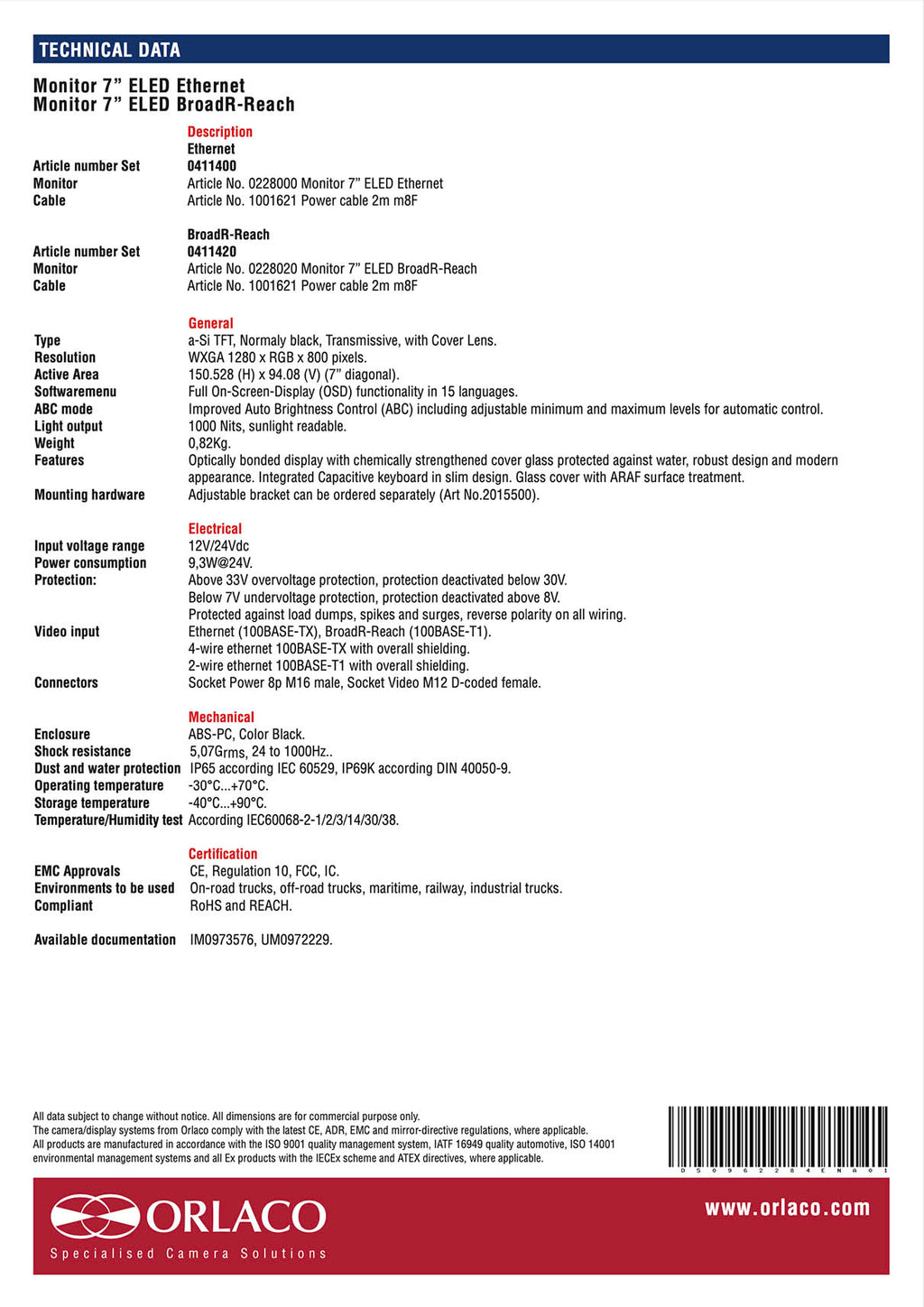

Technical specifications
• Input voltage 12V/24V/DC
• Connector Orlaco M16 8-pins (power) + M12 D-coded female (camera input)
• Cable 2m power multi cable
• Protection class IP65 (IEC 60529), IP69K (DIN 40050-9)
• Operating temperature -30ºC to +70ºC
• Housing High impact automotive thermoplastic
• Weight 0,82kg (incl. cable)
• Dimensions 194,6mm x 152,3mm x 30,9mm
• Features Optical bonded panel (display) with touch pads
• Orlaco Part 0411420
Adjustable bracket can be ordered separately (0401290)
