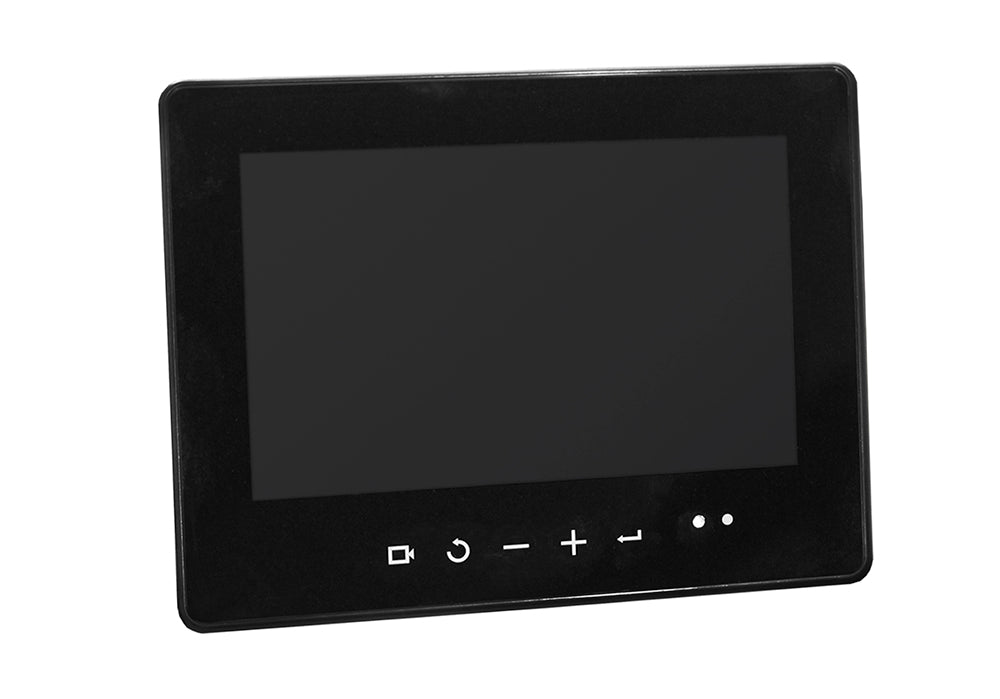

0411410 - Orlaco ELED SRD 7 inch monitor. The Orlaco ELED 7" SRD Ethernet monitor is suitable for use with vision solutions for machinery, trucks and ships.
The digital high-definition ELED monitor is combined with Orlaco Ethernet cameras, such as the EMOS. In addition, Short-Range Detection (SRD) sensors can be connected to this monitor, making it compatible with the Radar Eye active radar detection system.
The built-on monitor is shock and vibration resistant, automatically adjusts the brightness of the image depending on the ambient light conditions, and supports mirror image correction.
Adjustable bracket can be ordered separately (0401290).
Features & Details

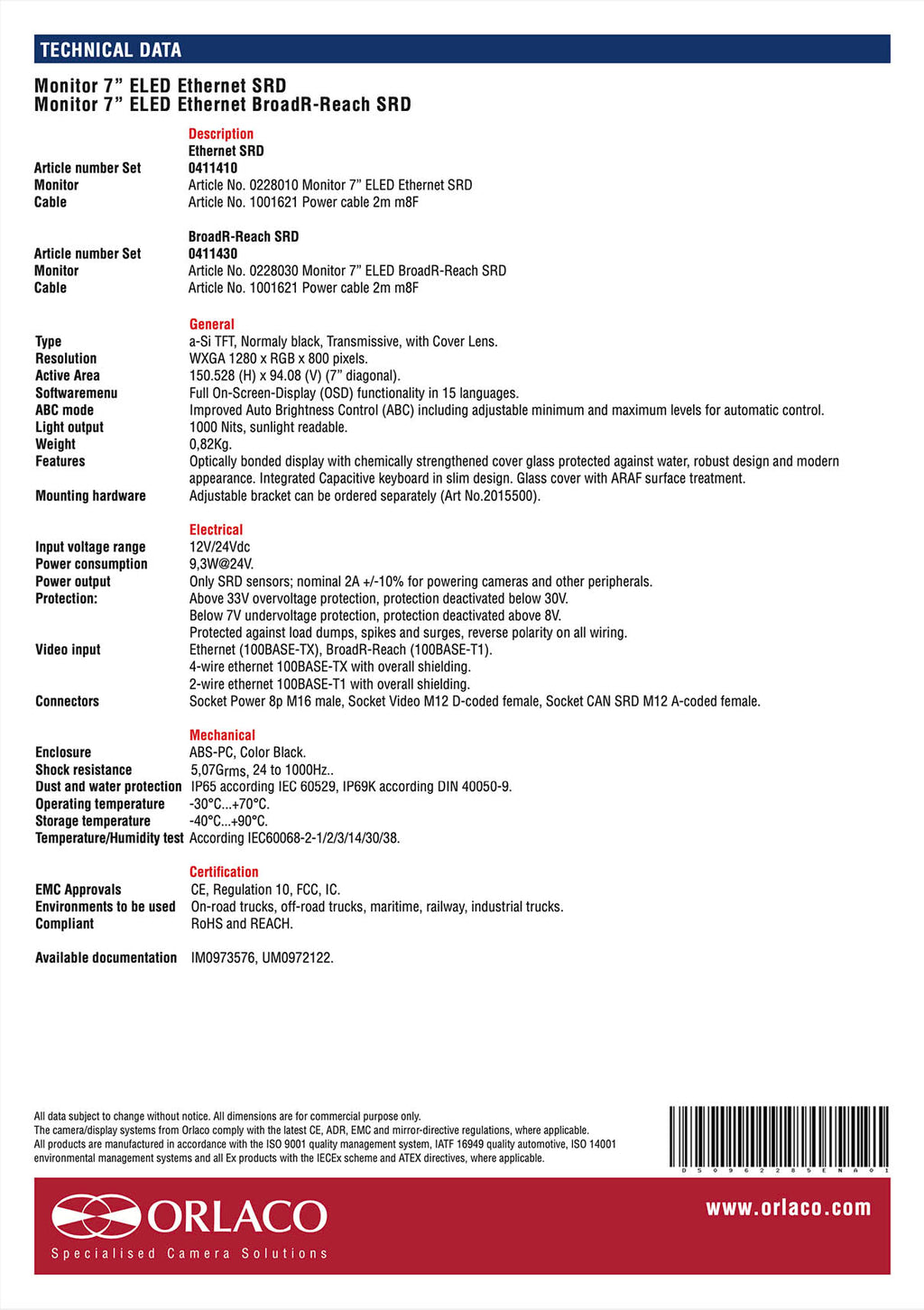

Technical specifications
• Input voltage 12V/24V/DC
• Connector Orlaco M16 8-pins (power) + M12 D-coded female (camera input) + M12 A-coded female (SRD input)
• Cable 2m power multi cable
• Protection class IP65 (IEC 60529), IP69K (DIN 40050-9)
• Operating temperature -30ºC to +70ºC
• Housing High impact automotive thermoplastic
• Weight 0,82kg (incl. cable)
• Dimensions 194,6mm x 152,3mm x 30,9mm
• Features Optical bonded panel (display) with touch pads
• Orlaco Part 0411410
Adjustable bracket can be ordered separately (0401290)
