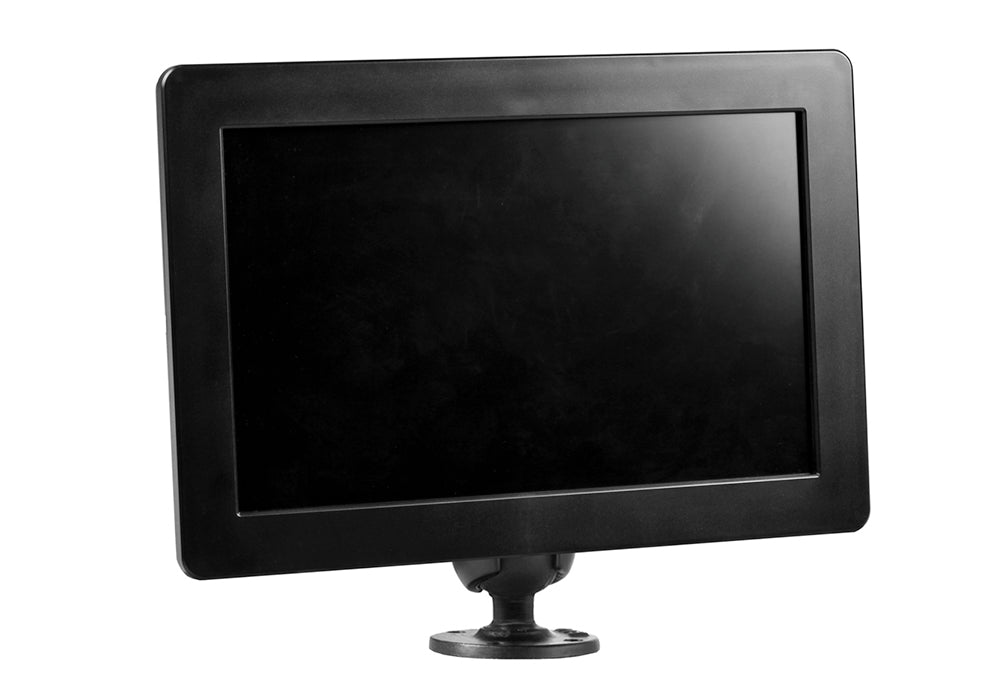

0224010 - Orlaco HLED 10 inch MultipleView monitor 1m MRB. The Orlaco HLED 10 inch MultipleView monitor 1m MRB can be used in vision solutions for machines, vehicles and vessels with an Orlaco GMSL vision system. A maximum of four cameras can be connected using an Orlaco GMSL Switcher.
The built-on High Definition monitor is shock and vibration-proof, automatically adjusts the brightness of the image to the ambient light and has a mirror-image correction.
Features & Details
Technical specifications
• Input voltage 12V/24V/DC
• Connector Orlaco 4-pins + coax (GMSL) female (camera input)
• Cable 1m video multi cable, 1m power multi cable
• Vibration resistance 50G
• Protection class IP54 according IEC60529
• Operating temperature -40ºC to +85ºC
• Housing Aluminium & high impact automotive synthetic thermoplastic polymer
• Weight 0,82kg (incl. cable)
• Dimensions 251mm x 173mm x 37,5mm
• Orlaco part 0224000
