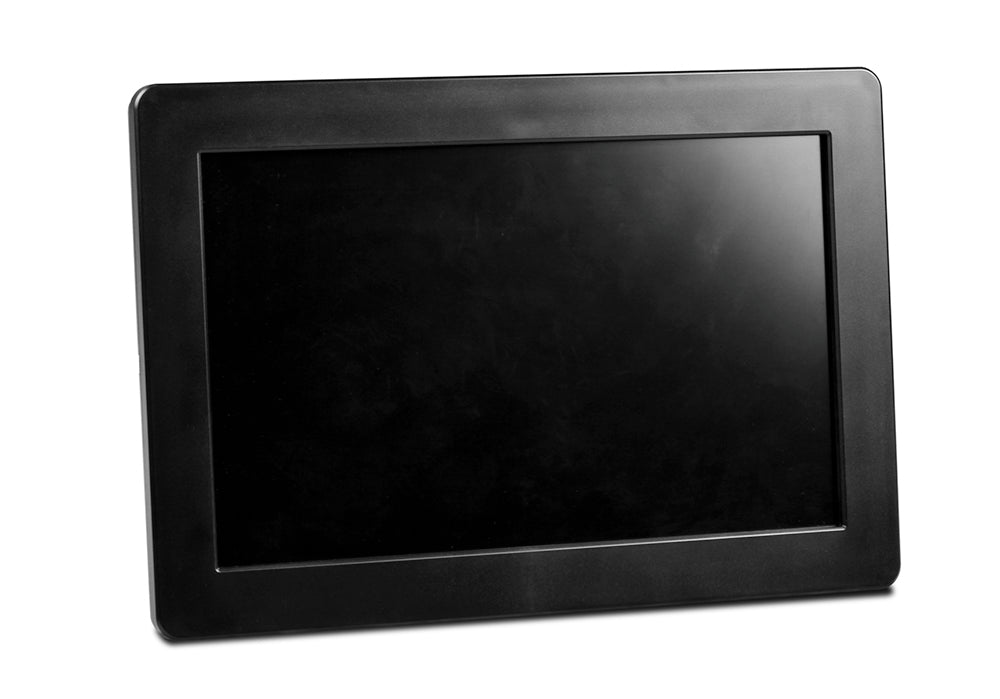

0224000 - Orlaco HLED 10 inch SingleView monitor 1m. The Orlaco HLED 10 inch SingleView monitor 1m can be used in vision solutions for trucks with an Orlaco GMSL vision system.
Camera images cannot be switched with this SingleView monitor and are therefore especially suitable for mirror replacement where the image may not be switched due to legislation. (CornerEye®: Truck Blind Spots Made Visible Thanks to a 270° Camera)
The built-on High Definition monitor is shock and vibration-proof, automatically adjusts the brightness of the image to the ambient light and has a mirror-image correction. This monitor has a adjustable holder with a tube / frame clamp.
Features & Details

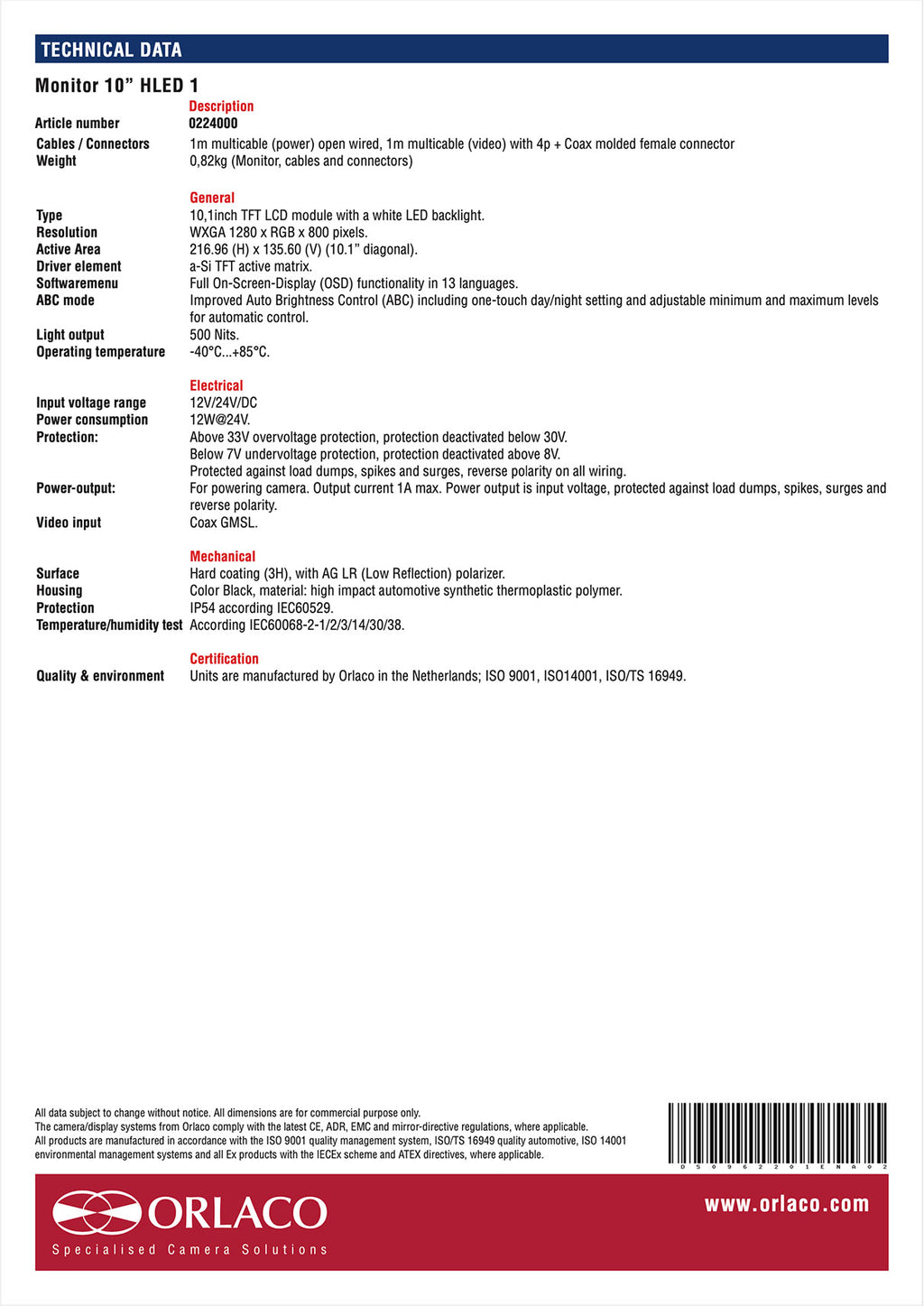

Technical specifications
• Input voltage 12V/24V/DC
• Connector Orlaco 4-pins + coax (GMSL) female (camera input)
• Cable 1m video multi cable, 1m power multi cable
• Vibration resistance 50G
• Protection class IP54 according IEC60529
• Operating temperature -40ºC to +85ºC
• Housing Aluminium & high impact automotive synthetic thermoplastic polymer
• Weight 0,82kg (incl. cable)

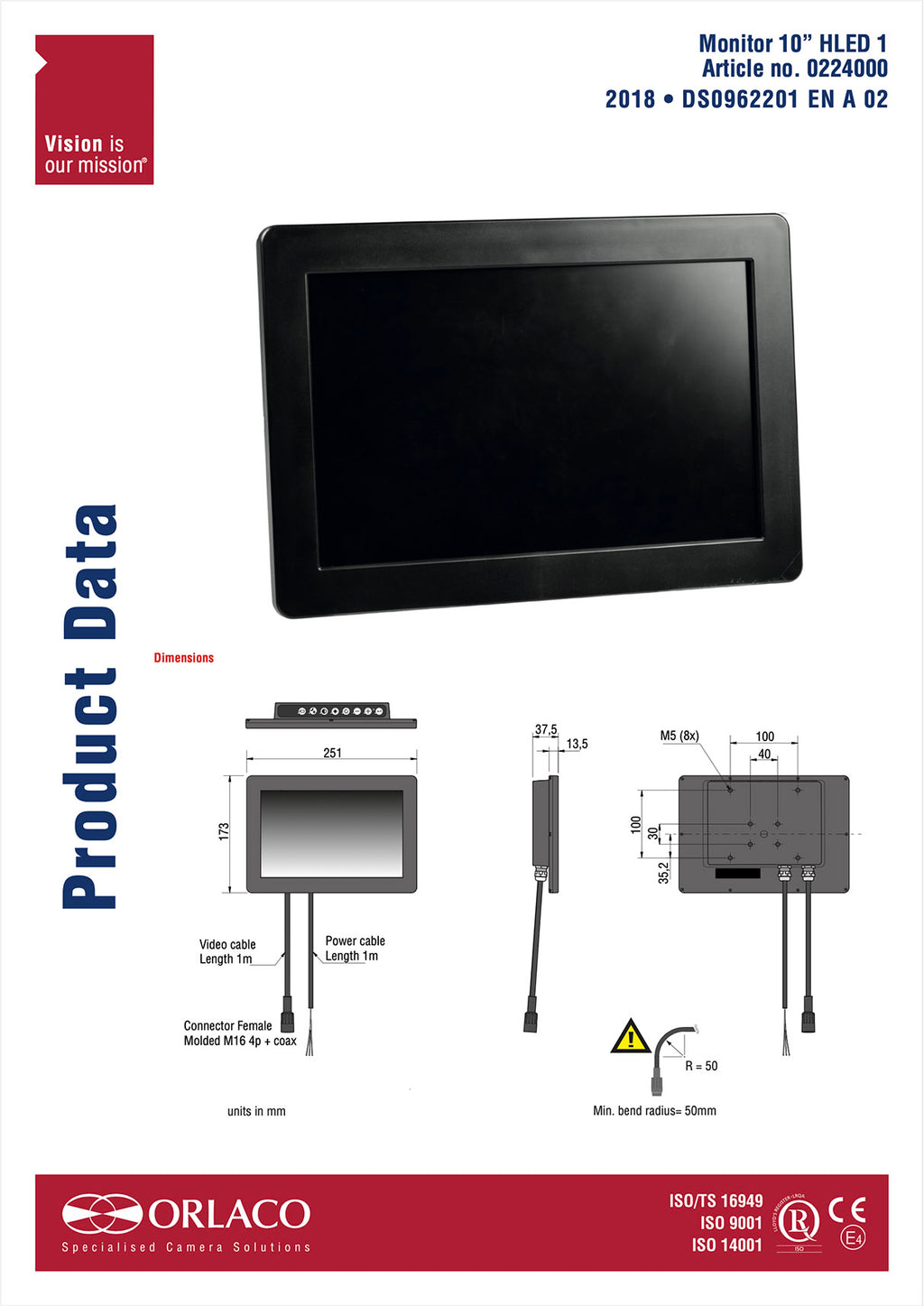

• Dimensions 251mm x 173mm x 37,5mm
• Orlaco part 0224000
