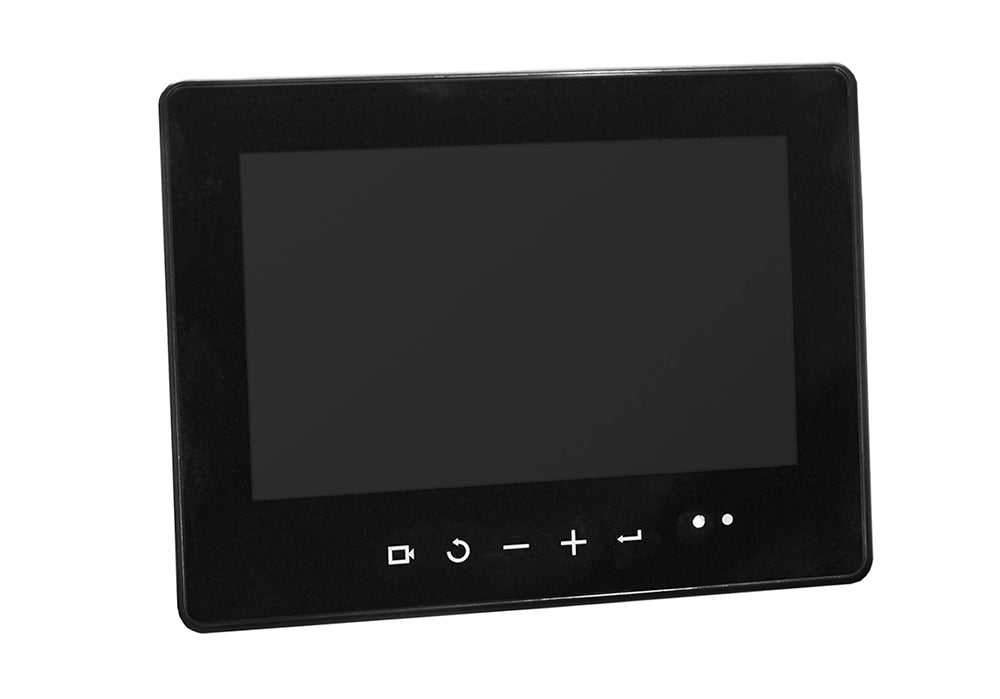

0226010 - Orlaco HLED 7 inch monitor with 1m cables. The Orlaco HLED 7 inch monitor can be used in vision solutions for machines, vehicles and vessels with an Orlaco GMSL vision system. A maximum of four cameras can be connected using an Orlaco GMSL Switcher.
The built-on High Definition monitor is shock and vibration-proof, automatically adjusts the brightness of the image to the ambient light and has a mirror-image correction.
Adjustable bracket can be ordered separately (0401290)
Features & Details

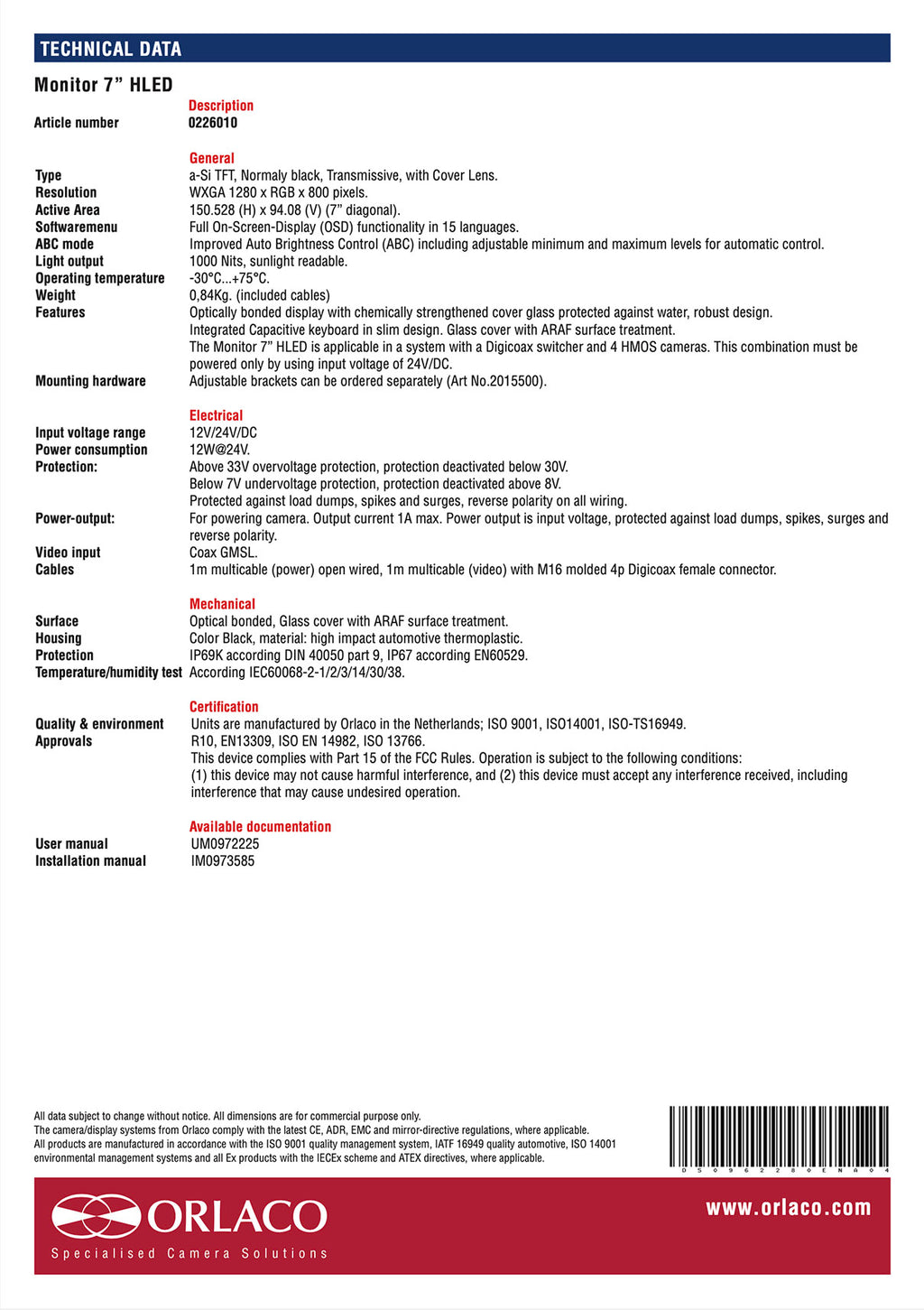

Technical specifications
• Input voltage 12V/24V/DC
• Connector Orlaco M16 4-pins + coax (GMSL) female (camera input)
• Cable 1m video multi cable, 1m power multi cable
• Protection class IP67 (EN60529), IP69K (DIN 40050)
• Operating temperature -30ºC to +75ºC
• Housing High impact automotive thermoplastic
• Weight 0,84kg (incl. cable)
• Dimensions 194,6mm x 152,3mm x 35,9mm
• Features Optical bonded panel (display) with touch pads
• Orlaco part 0226010
