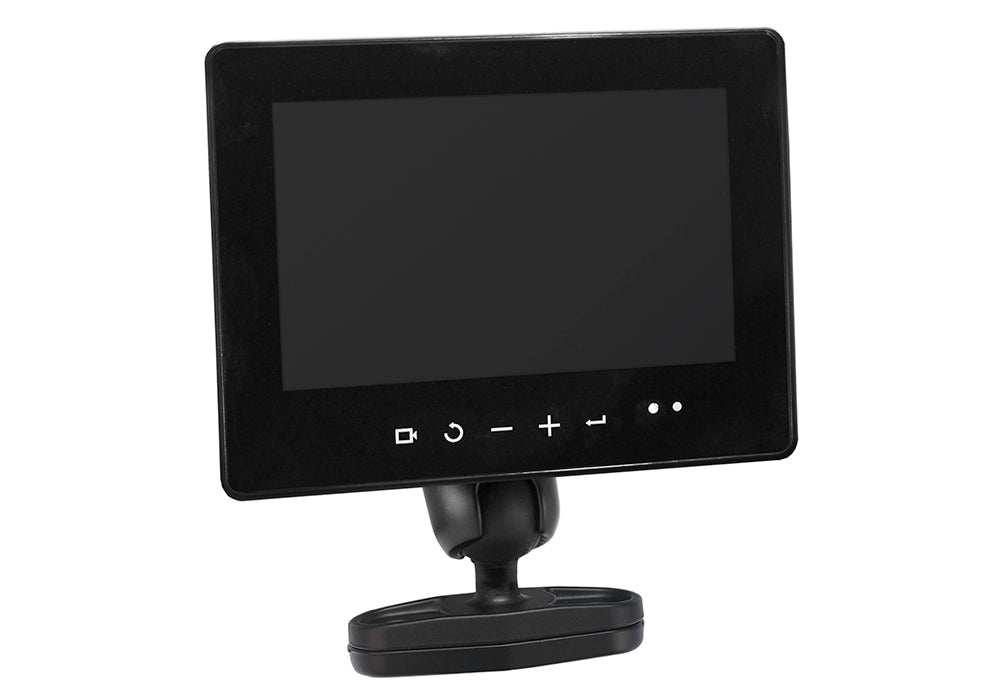

0226030 - Orlaco HLED 7 inch monitor with 4m cables and 190mm clamp bracket. The Orlaco HLED 7 inch monitor can be used in vision solutions for lift trucks with an Orlaco GMSL vision system. A maximum of four cameras can be connected using an Orlaco GMSL Switcher.
The built-on High Definition monitor is shock and vibration-proof, automatically adjusts the brightness of the image to the ambient light and has a mirror-image correction.
This monitor has a adjustable holder with a tube / frame clamp.
Features & Details
Technical specifications
• Input voltage 12V/24V/DC
• Connector Orlaco M16 4-pins + coax (GMSL) female (camera input)
• Cable 4m video multi cable, 4m power multi cable
• Protection class IP67 (EN60529), IP69K (DIN 40050)
• Operating temperature -30ºC to +75ºC
• Housing High impact automotive thermoplastic
• Dimensions 194,6mm x 152,3mm x 35,9mm
• Features Optical bonded panel (display) with touch pads
• Orlaco part 0226030
